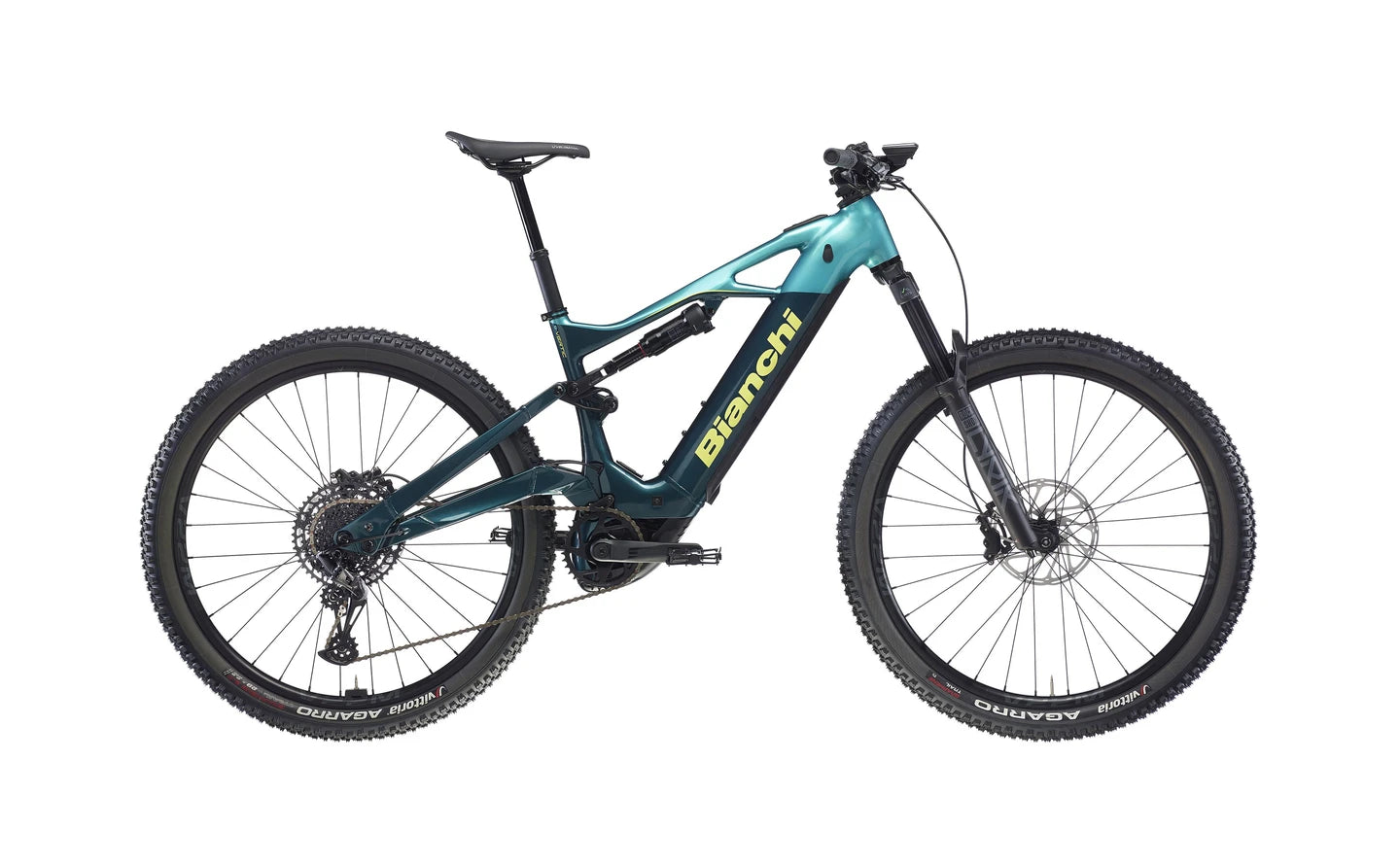

Bianchi E-Vertic FX SE XT12 Bosch CX - E-MTB

TECHNICAL SPECIFICATIONS

FRAME: Bianchi e-Vertic FX, aluminium, 12x148 mm rear thru axle, Post mount 180 disc brake type, Front travel 150 mm, Rear travel 140 mm, Internal cable routing in steerer, 800 Wh battery compatible, sizes 40-44-48-53

FORK: RockShox Lyrik 29", 150 mm travel, Steerer tube 1,5" tapered, 35 mm stanchions, Maxle Stealth 15x110 Boost axle, Rotor: minimum 180 mm, maximum 220 mm, 44 mm rake

TIRES: Pirelli Scorpion 29x2.6 Enduro M Front E-MTB R Rear, 60TPI

CRANKSET: FSA CK-745, 165mm

BOTTOM BRACKET: Included in the drive unit

CHAIN: Shimano CN-M6100

CASSETTE: Shimano Deore, CS-M6100, 10-51T, 10-12-14-16-18-21-24-28-33-39-45-51T

SHIFT GROUP: Shimano Deore XT, RD-M8100, 12sp

BRAKES: Sram DB4, 4 pistons calipers, mineral oil - Sram DB4

BATTERY: Bosch Powertube 800 Wh

ENGINE: Bosch CX, 100Nm

HANDLEBAR: FSA Comet HB-XC-302L, Rise 15 mm, Diameter 35 mm, Width 800 mm

STEM: FSA Comet ST-OS-173, Diameter 28.6 mm, Barbore 35 mm Size: 50 mm

GRIP / HANDLES: Herrmans Luna lock 130 mm

SELLA: Velomann GND 262x145

SEATPOST: Velomann Diameter 31.6mm, internal cable routing length: 100 mm - SM, 125 mm - MD, 150 mm - LG/XL
